Capacity and machines
The numbers you need before you send a drawing. If your part sits near a limit, ring us and ask: weight, material and features all change what is possible.
Machining capacity
| Machine | Capacity | Used for |
|---|---|---|
| CNC chuck lathes | Up to Ø450mm, up to 1000mm long | Subject to weight. Large turned parts, one-offs to batch. |

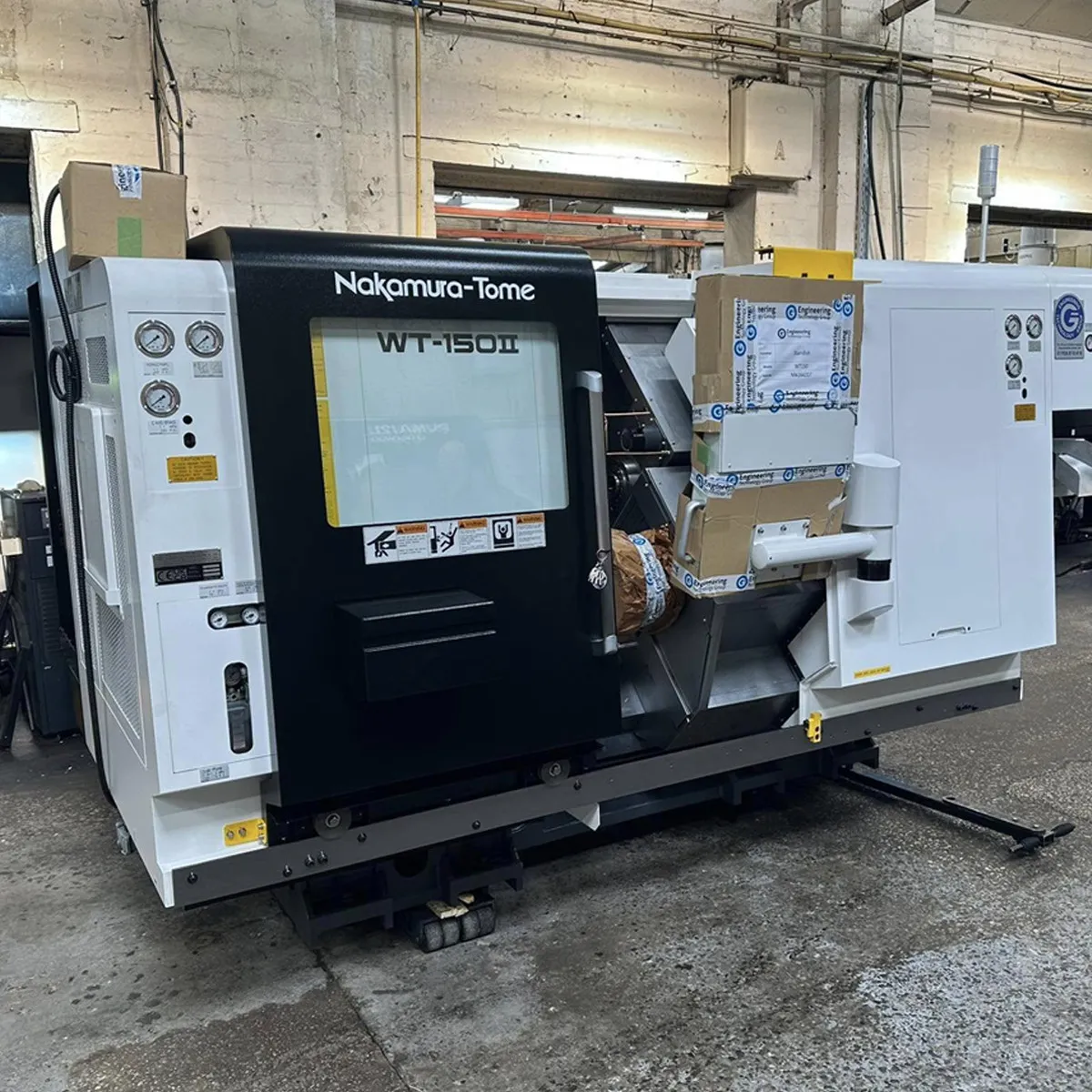

| CNC bar-fed lathes | Up to Ø65mm, up to 450mm long | Twin-spindle, twin-turret. High-volume turned parts. |

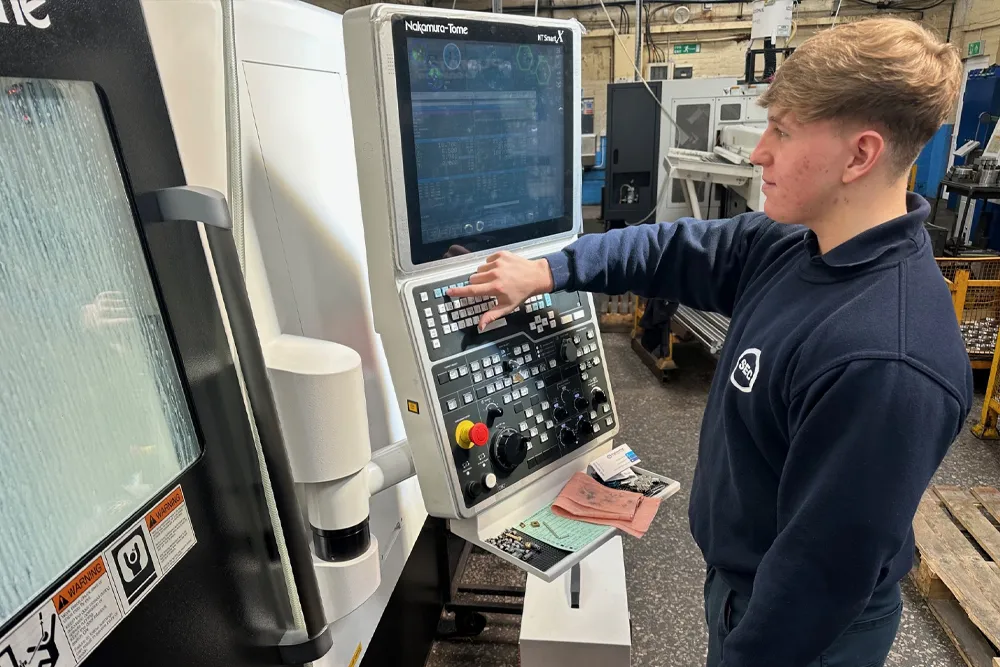

| Multi-axis turn-mill | FANUC controls | Turned and milled features in one set-up. |

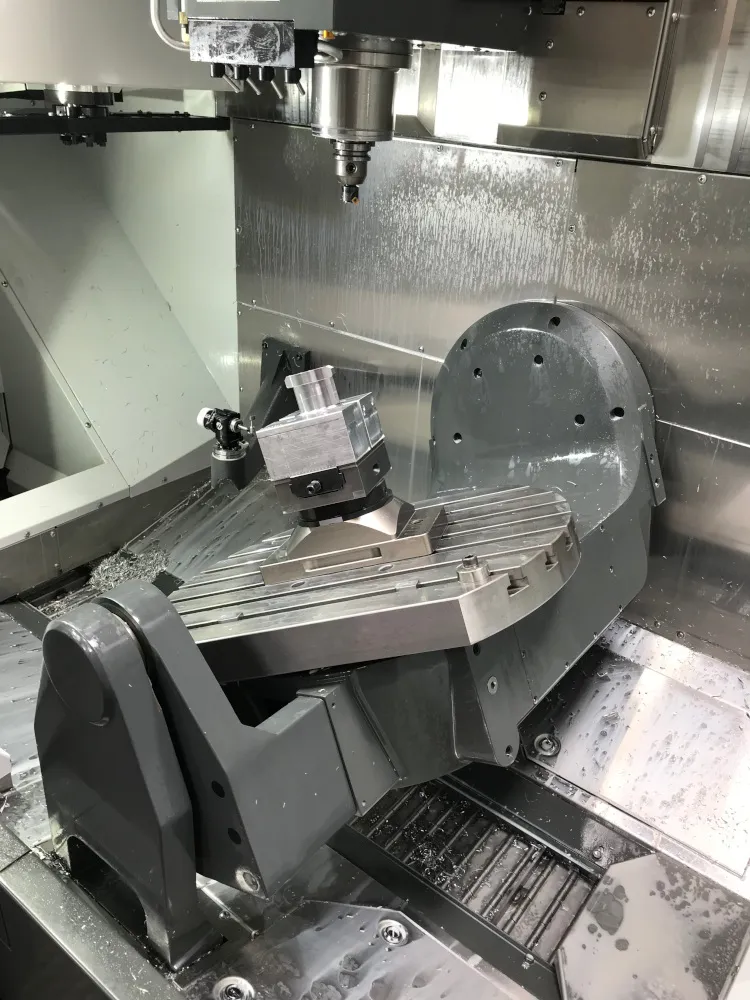

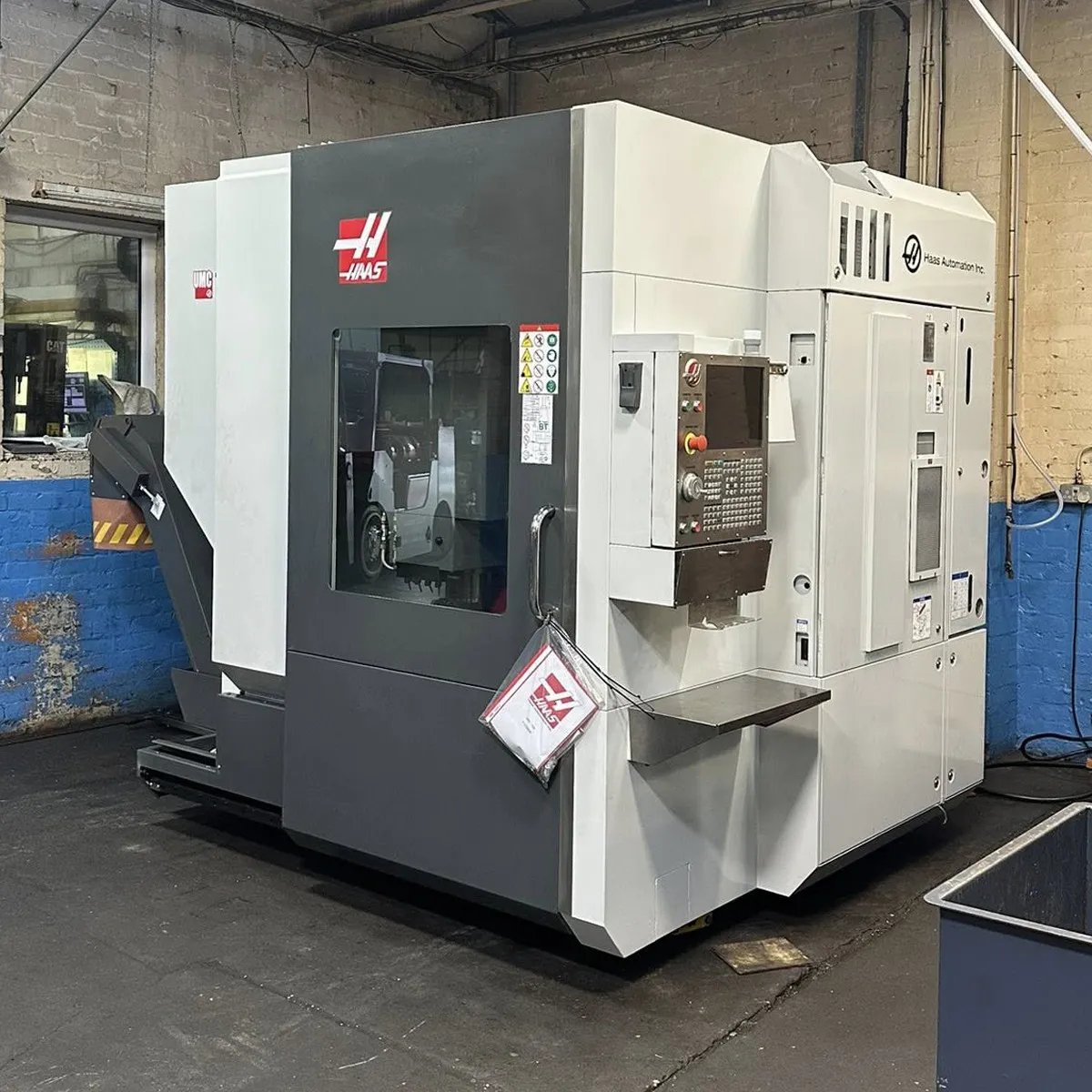

| 5-axis machining centres | Full 5-axis | Complex geometry in fewer set-ups. |
| DN Solutions ACE VC430 | Twin pallet, 30 tools, 350kg table | Next job set while the current one runs. |
| Grinding | In-house section | Fine finishes and close tolerances without sending work out. |
Inspection equipment
- IMS Impact CMM
- Coordinate measuring machine running PC-DMIS software
- Keyence IM-7030T
- Image dimension measuring system
- Trimos V4
- Digital height gauge
- Gagemaker
- Thread measuring system
Along with the usual standard inspection equipment. How we check parts
Materials
Most of our work is in stainless steel and aluminium. We have a lot of experience with the harder alloys too.
- Stainless steel
- Aluminium
- Super Duplex
- Inconel
- Monel
- Hastelloy
- Non-metallic materials
Not sure it will fit?
Send the drawing anyway, or ring and ask. We will tell you straight away if it is outside what we can make.
